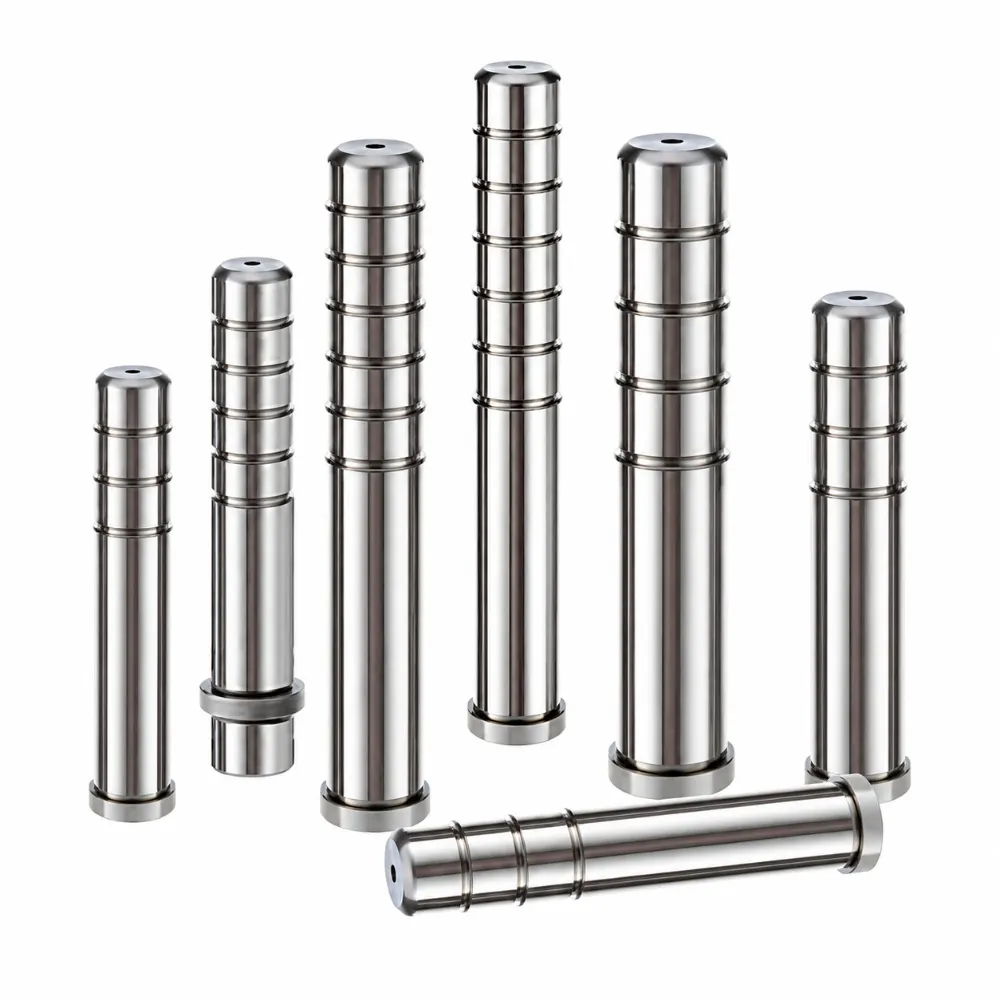

Metal Stamping Die Guide Post
Metal Stamping Die Guide Posts are designed to provide dependable guidance and structural support for precision die assemblies. Manufactured from premium-grade steel and processed with advanced machining technology, they deliver smooth operation and excellent resistance to deformation during repeated production cycles. These components help improve die stability, increase production consistency, and protect critical tooling parts from premature damage. Suitable for a wide range of metal forming and stamping applications, they offer reliable performance in both standard and customized tooling systems.
- Optimized Surface Hardness Performance: Improves durability against continuous friction effectively.
- Stable Operation Under High Speeds: Maintains smooth guidance during rapid stamping.
- Precision Ground For Consistency: Ensures uniform movement across production cycles.
- Adaptable To Diverse Tooling Systems: Supports multiple industrial die configurations reliably.
Produktbeschreibung
Einleitung
Metal Stamping Die Guide Post is an essential component used in stamping dies, progressive dies, und Präzisionswerkzeugsysteme. It is designed to ensure accurate alignment between the upper and lower die sections during production, helping to improve stamping accuracy and maintain consistent product quality. Manufactured from high-quality bearing steel, the guide post offers excellent dimensional stability, Sanfte Bewegung, and reliable performance in demanding industrial environments.
Through precision grinding, Wärmebehandlung, and surface finishing processes, the guide post achieves outstanding hardness, Verschleißfestigkeit, und Haltbarkeit. Its robust construction helps reduce friction and component wear, extending the service life of both the die set and related tooling components. The precision-guided movement also minimizes alignment errors, reducing downtime and improving overall manufacturing efficiency.
Metal Stamping Die Guide Posts are widely used in automotive parts manufacturing, Elektronikproduktion, home appliance components, aerospace applications, metal fabrication, and industrial equipment industries. Available in various diameters, Längen, and installation styles, these guide posts can meet different tooling requirements and industry standards. Custom sizes, Materialien, and surface treatments are also available to support OEM and ODM projects, providing reliable solutions for precision stamping and forming applications worldwide.
Technische Daten
| Parameter | Spezifikation |
|---|---|
| Produktname | Metal Stamping Die Guide Post |
| Material | SUJ2 / GCr15 Lagerstahl |
| Oberflächenfinish | Präzisionsboden & Poliert |
| Härte | HRC 58-62 |
| Toleranz | ±0.005 mm |
| Geradlinigkeit | ≤0.003 mm/100 mm |
| Durchmesserbereich | Ø10 mm – Ø80 mm |
| Längenbereich | 50 mm – 500 mm |
| Oberflächenbehandlung | Hard Chrome Plating (Optional) |
| Führungstyp | Schieblager / Kugellager |
| Installationstyp | Press-Fit / Schultertyp |
| Schmierung | Ölrille optional |
| Standard | VON, ER, MISUMI Standard |
| Dienstzeit | Langfristige industrielle Nutzung |
| Anpassung | OEM & ODM verfügbar |
Drei zentrale Anpassungsaspekte, Auf Ihre Bedürfnisse zugeschnitten
Verschiedene Anpassungsmethoden anpassen, um unterschiedliche Anforderungen zu erfüllen.
Präzisionsfertigung, Ausgezeichnete Qualität
Höhere Ausrichtungsgenauigkeit
Engineered with tight manufacturing tolerances to maintain precise die positioning, helping reduce dimensional variation, improve repeatability, and ensure consistent stamping performance throughout production cycles.
Erhöhte Lastkapazität
Designed to withstand continuous high-pressure operations, providing stable guidance under demanding working conditions while supporting heavy-duty stamping and forming applications effectively.
Reduzierter Wartungsbedarf
The optimized surface finish and hardened structure minimize wear between moving components, lowering maintenance frequency and helping manufacturers reduce long-term operating costs.
Flexible Anpassungsoptionen
Erhältlich in mehreren Durchmessern, Längen, Montagestile, and material grades, allowing easy adaptation to various die set designs and specialized industrial requirements.
Verfeinerter Dienst, Verkürzte Lieferzeit
Von der Entwurfsprüfung bis zur Durchführung, Wir bieten während des gesamten Prozesses eine gezielte Einzelnachbetreuung an.
Beratung → Bereitstellung von Zeichnungen → Designprüfung & Angebot → Auftragsbearbeitung → Qualitätskontrolle → pünktliche Lieferung → Nachverfolgung nach dem Verkauf
Unsere Vorteile
Gestützt auf über 25 Jahre Ingenieurserfahrung, Unser Team bietet umfassende Dienstleistungen – von individueller Formgestaltung und Präzisionsbearbeitung bis hin zur Serienfertigung – unterstützt durch ein robustes Qualitätssicherungssystem und proaktiven Kundenservice. Zertifiziert nach ISO9001, ISO14001, und IATF 16949, Wir streben kontinuierlich nach Exzellenz in Qualität, Innovation, und Kundenzufriedenheit.
Über 100,000 Einheiten im Lager, mit 2-Stunden-Versand für Standardprodukte.
Implementierung eines dreistufigen Inspektionssystems – erste Materialprüfung, In-Process-Inspektion, und Endabschlussprüfung.
Großer Bestand und schnelle Bearbeitung, Sicherstellung der pünktlichen Lieferung durch 100%ige Produktinspektion.
Anwendungsbereich
Die bevorzugte Wahl in verschiedenen Branchen.
FAQ
1. What is a Metal Stamping Die Guide Post used for?
A Metal Stamping Die Guide Post is used to accurately align the upper and lower sections of a stamping die. It helps maintain precision during stamping operations, Reduziert den Verschleiß der Bauteile, and improves overall tooling performance.
2. What materials are commonly used for guide posts?
Guide posts are typically manufactured from high-quality bearing steel such as SUJ2 or GCr15. These materials provide excellent hardness, Verschleißfestigkeit, and long service life in demanding industrial applications.
3. Can guide posts be customized to specific requirements?
Ja. Individuelle Durchmesser, Längen, Montagestile, Oberflächenbehandlungen, and tolerance requirements can be manufactured according to customer drawings or application specifications.
4. What industries use Metal Stamping Die Guide Posts?
These guide posts are widely used in automotive manufacturing, Elektronikproduktion, Haushaltsgeräte, aerospace components, metal fabrication, Industriemaschinen, and precision tooling industries.
5. How do I choose the correct guide post size?
The appropriate size depends on the die structure, load requirements, operating speed, and tooling dimensions. Technical drawings or application details can help determine the most suitable guide post specification.
